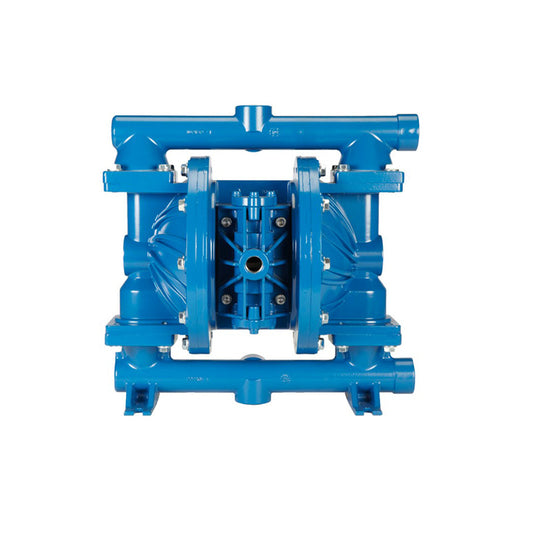

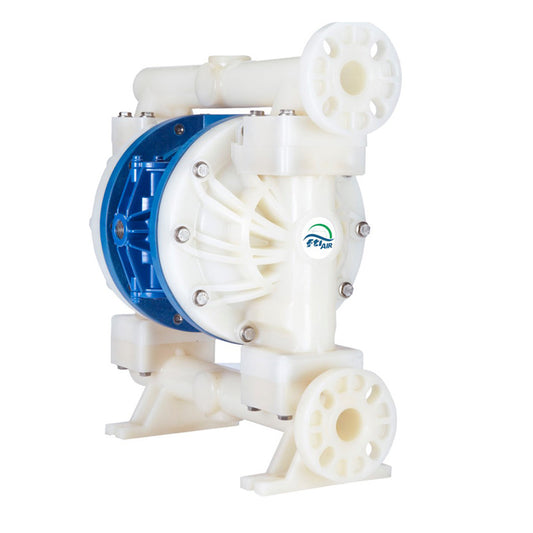

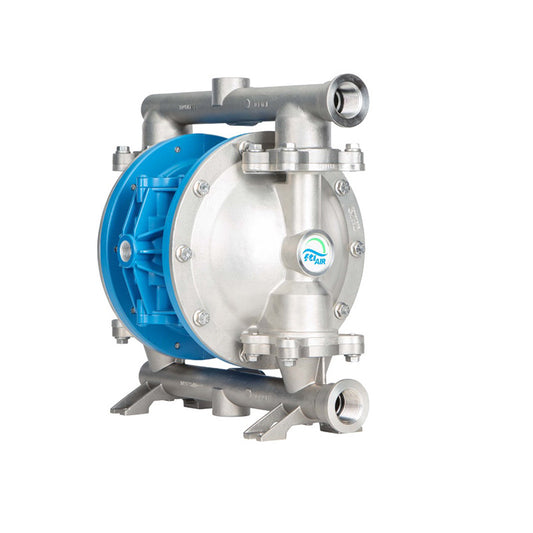

Finish Thompson 1'' (25mm) AODD Pumps

Industrial Pump Supplier is an authorized distributor for Finish Thompson's Air Operated Double Diaphragm Pumps (AODD Pumps). We ensure to keep a wide variety of options for various Applications such as: Acids & Bases, Plating Solutions, Water & Wastewater, Paints, Inks, Solvents, Ceramic Slip & Glaze, Lubricants & Oils

Specifications:

Suction & Discharge size: 1'' x 1''

Porting Location: End
Connection Types: FNPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: 1/2” FNPT x 1/2” FNPT

Maximum Capabilities

Flow rate: 51 gpm (193 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.084 gal (0.32 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.25″ (6.4 mm)
Sound Pressure: 73.6 dB(A)

Select materials based on your application by using chemical compatibility chart

FDA-compliant material options available.
