FT10P-PP-55PC-F1 ( FDA Approved )

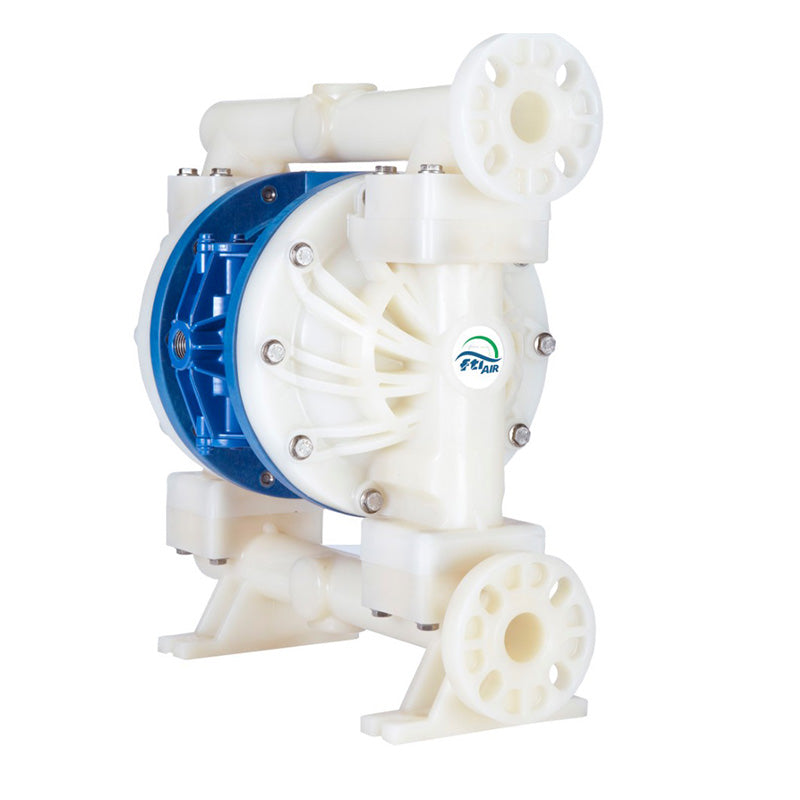

Finish Thompson 1" Polypropylene AODD Pump

Specifications:

Suction & Discharge size: 1'' x 1''

Porting Location: End
Connection Types: FNPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: 1/2” FNPT x 1/2” FNPT

Maximum Capabilities:

Flow rate: 51 gpm (193 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.084 gal (0.32 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.25″ (6.4 mm)
Sound Pressure: 73.6 dB(A)

Manual & Parts List

Technical Product Information

FDA Compliant Flyer
