Economy Package PVDF/Polypropylene

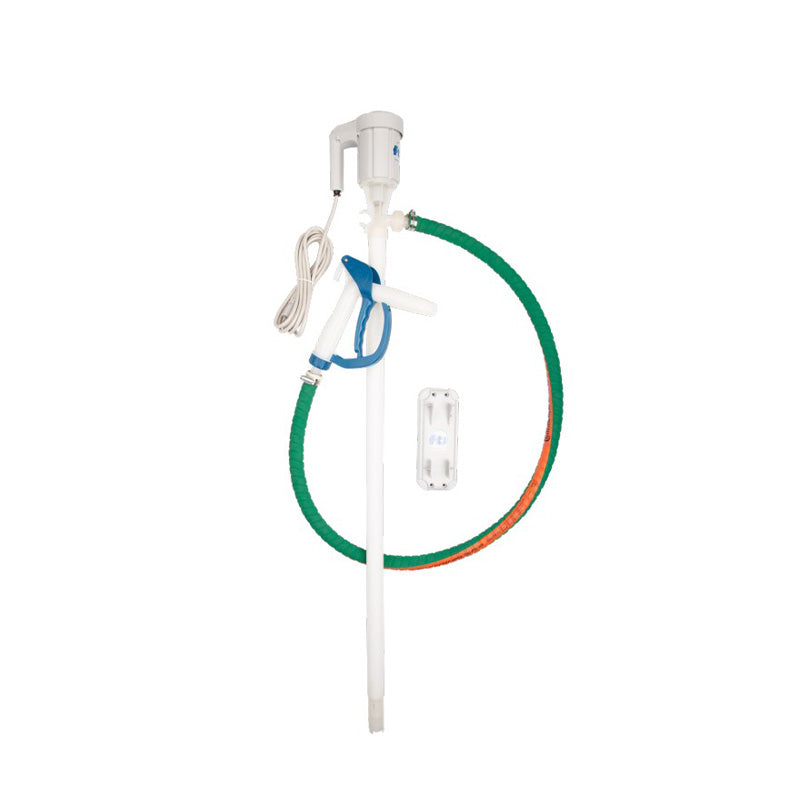

Finish Thompson Economy Drum Pump package:

Drum pump package includes wall hanger, 5ft. PVC hose, hose clamp

Materials Of Construction:

Tube: Pure PP/Pure PVDF

Shaft: Alloy 625

O-Ring: FKM

Impeller: ETFE

Tube Specifications:

Tube Diameter: 1-1/4 in (3.2 cm)

Discharge Size: 3/4 in (1.91 cm)

Discharge Type: Hose barb

Hose Type: 3/4 in (1.91 cm)

Motor Specifications:

115V: 60Hz,230W/110W, 8,000RPM-14,000RPM

230V: 50-60Hz,230W/110W, 8,000RPM-14,000RPM

12V: Battery,150W/100W,8,000RPM-12,000RPM

Maximum Performance:  17 gpm (64 lpm) 20 ft (6.1 m)

Maximum Specific Gravity & Viscosity: 1.6SG & 300cp, 100cP for Battery
