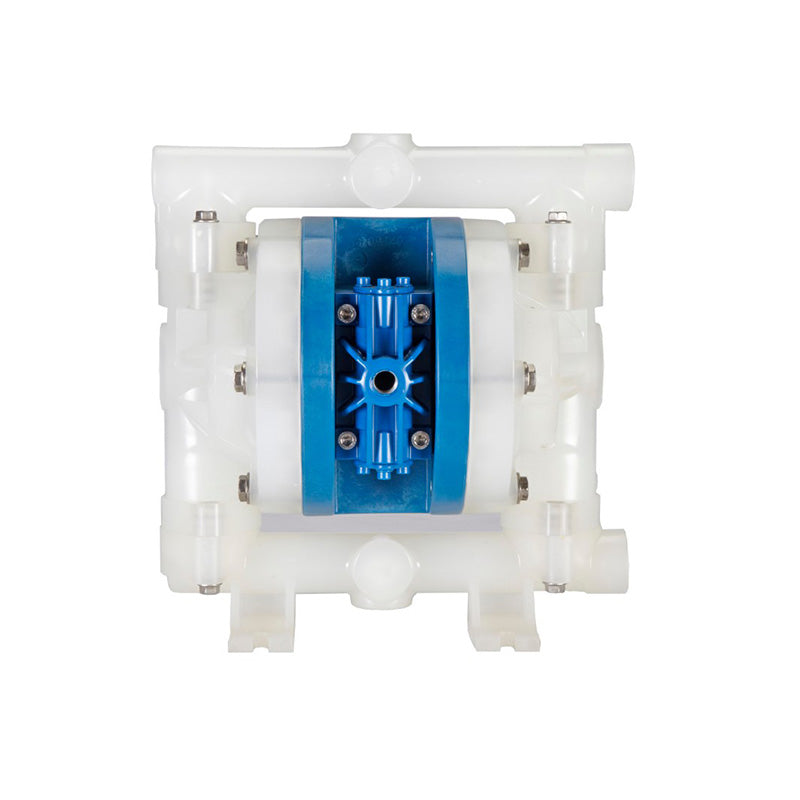

FT05P-PP-4TPC-N1 ( FDA Approved )

Finish Thompson 1/2" FDA AODD Pump

Specifications:

Suction & Discharge size: 1/2'' x 1/2''

Porting Location: End
Connection Types: NPT
Air Inlet & Air Exhaust Size: 1/4” FNPT x 1/2” FNPT

Maximum Capabilities

Flow rate: 20 gpm (76 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.026 gal (0.10 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.19″ (4.7 mm)
Sound Pressure: 72.1 dB(A)

Manual & Parts List

Technical Product Information

FDA Compliant Flyer
