FT15ZA-AA-RRAT-N2

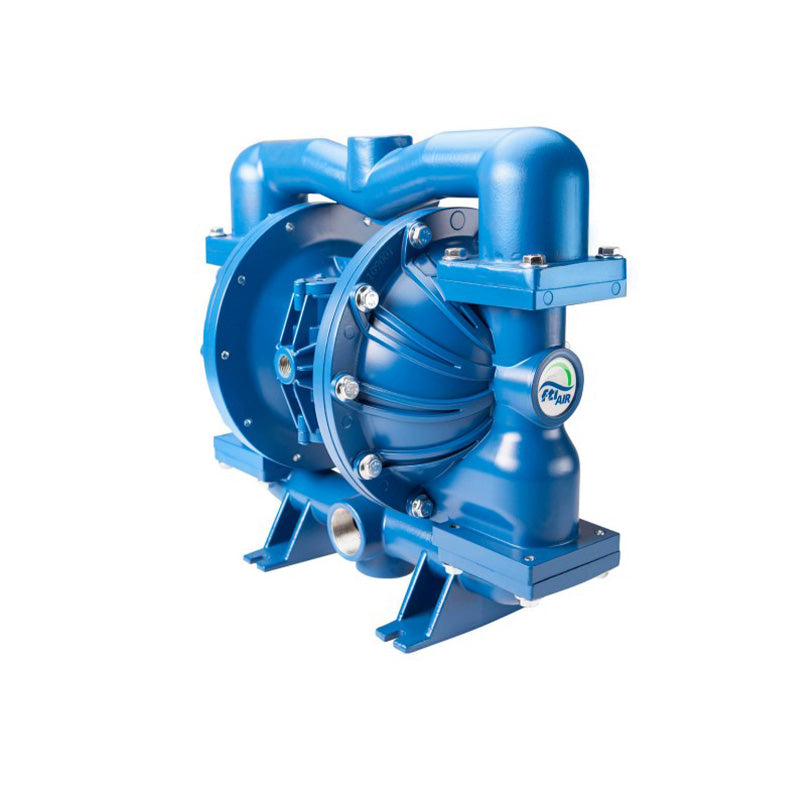

Finish Thompson 1 1/2" Aluminium AODD Pump

Specifications:

Suction & Discharge size: 1.5'' x 1.5''

Porting Location: End, Center Horizontal
Connection Types: FNPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: 1/2” FNPT x ¾” FNPT

Maximum Capabilities:

Flow rate: 133 gpm (503 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.24 gal (0.91 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.32” (8.2 mm)
Sound Pressure: 77 dB(A)
