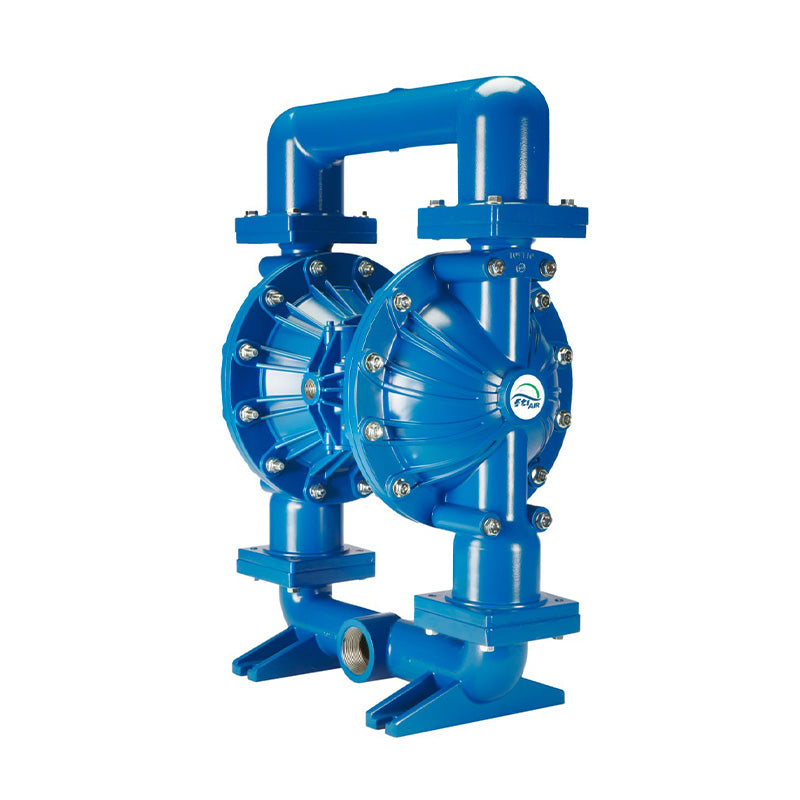

FT20A-AA-1TTC-N2

Finish Thompson 2" Aluminium AODD Pump

Specifications:

Suction & Discharge size: 2'' x 2''

Porting Location: End, Center
Connection Types: FNPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: ¾” FNPT x ¾” FNPT

Maximum Capabilities:

Flow rate: 156 gpm (590 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.31 gal (1.2 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.35” (8.9 mm)
Sound Pressure: 77 dB(A)

Manual & Parts List

Technical Product Information
