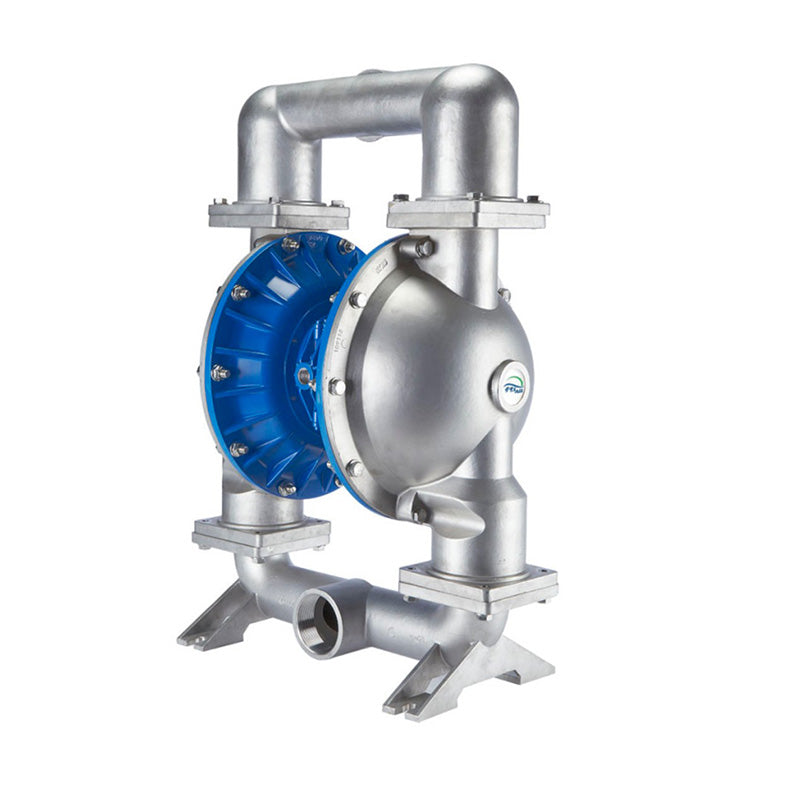

FT30S-AA-RRR0-N2

Finish Thompson 3" 316SS AODD Pump

Specifications:

Suction & Discharge size: 3'' x 3''

Porting Location: Center
Connection Types: FNPT, ANSI/DIN/ISO flange
Air Inlet & Air Exhaust Size: ¾” FNPT x ¾” FNPT

Maximum Capabilities:

Flow rate: 240 gpm (908 lpm)

Air Supply Pressure: 120 psi (8.3 bar)
Displacement Per Stroke: 0.98 gal (3.7 lit)
Air Inlet Pressure: 10 psig (0.7 bar)
Particle Size: 0.50” (12.7 mm)
Sound Pressure: 86.5 dB(A)

Manual & Parts List

Technical Product Information
