High Performance Package Polypropylene

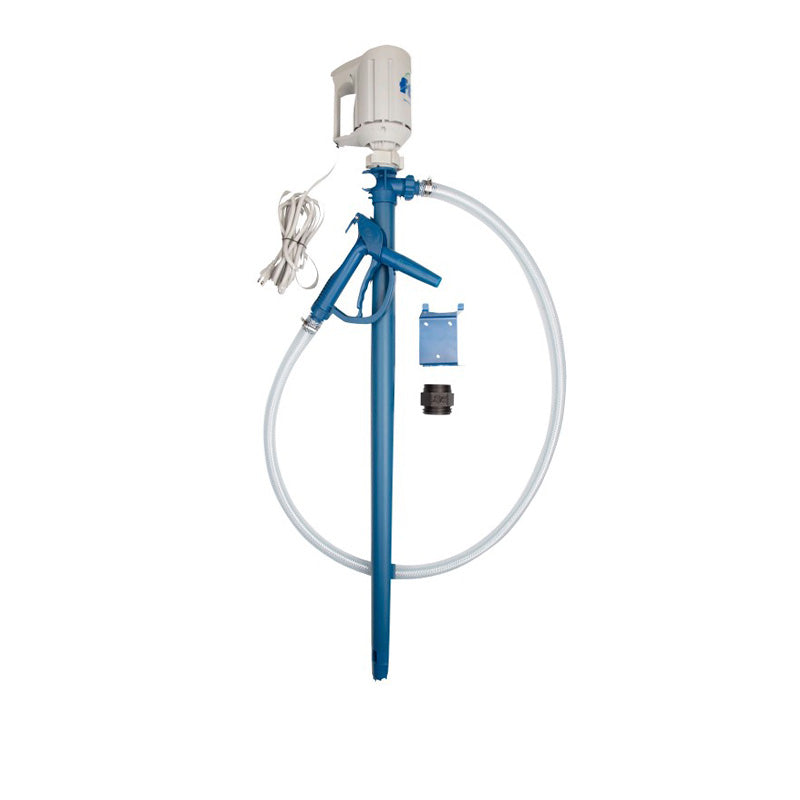

Finish Thompson High Performance Drum Pump Package:

Drum pump package includes wall hanger, 5ft. PVC hose, hose clamp

Material of construction:

O-Ring: FKM

Shaft: Alloy 625

Impeller: PVDF

Tube Specifications:

Tube Diameter: 2 in (5.1 cm)

Discharge Size: 1 in (2.54cm)

Discharge Type: Hose barb w/variable orifice

Hose Type: 1 in (2.54 cm)

Maximum Performance Electric Motor: 40 gpm (151 lpm) 80 ft (24 m)

Maximum Performance Air Motor: 22 gpm (83 lpm) 38 ft (11.6 m)

Maximum Specific Gravity & Viscosity: 1.8SG & 500cP, 330cP for Air

Motor Specifications:

115V: 60Hz ,650W/400W, 3,500RPM-10,000RPM

230V: 50-60Hz ,650W/400W, 3,500RPM-10,000RPM

Air: 80-100psi@15-32 cfm, 400W, 300-9,000

Drum Pump Tube Technical information

Drum Pump Tube Manual & Parts List
